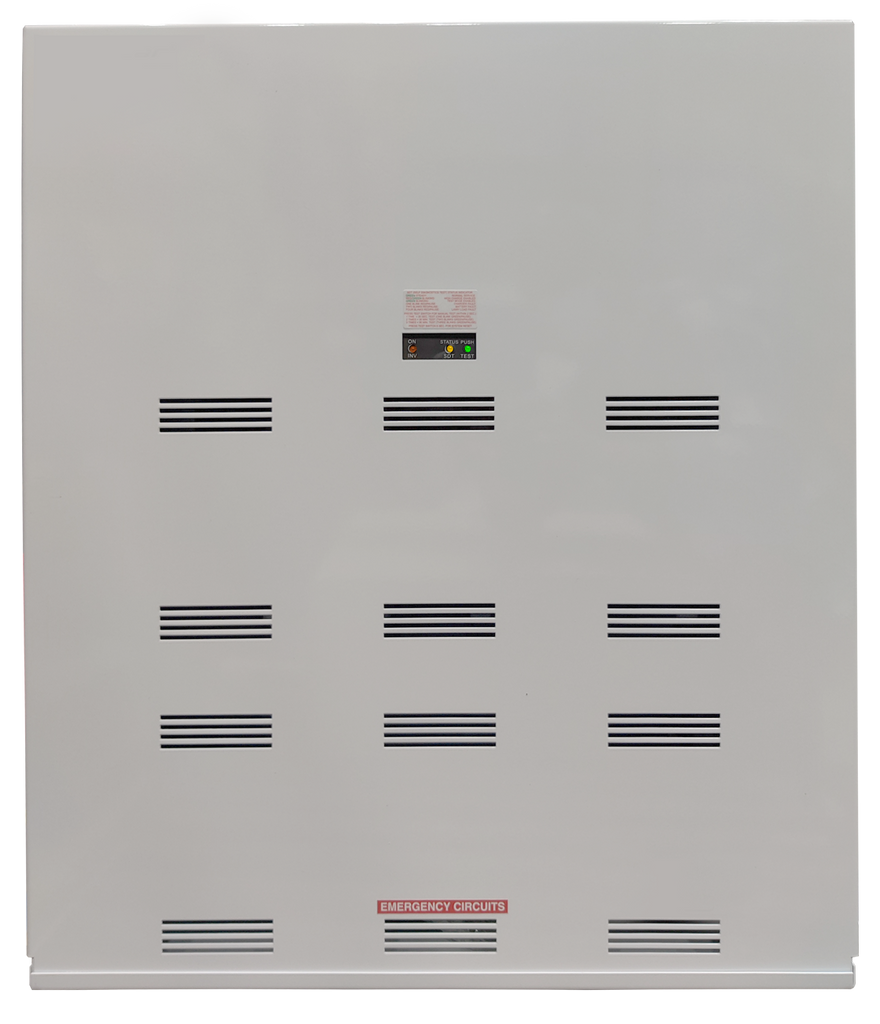

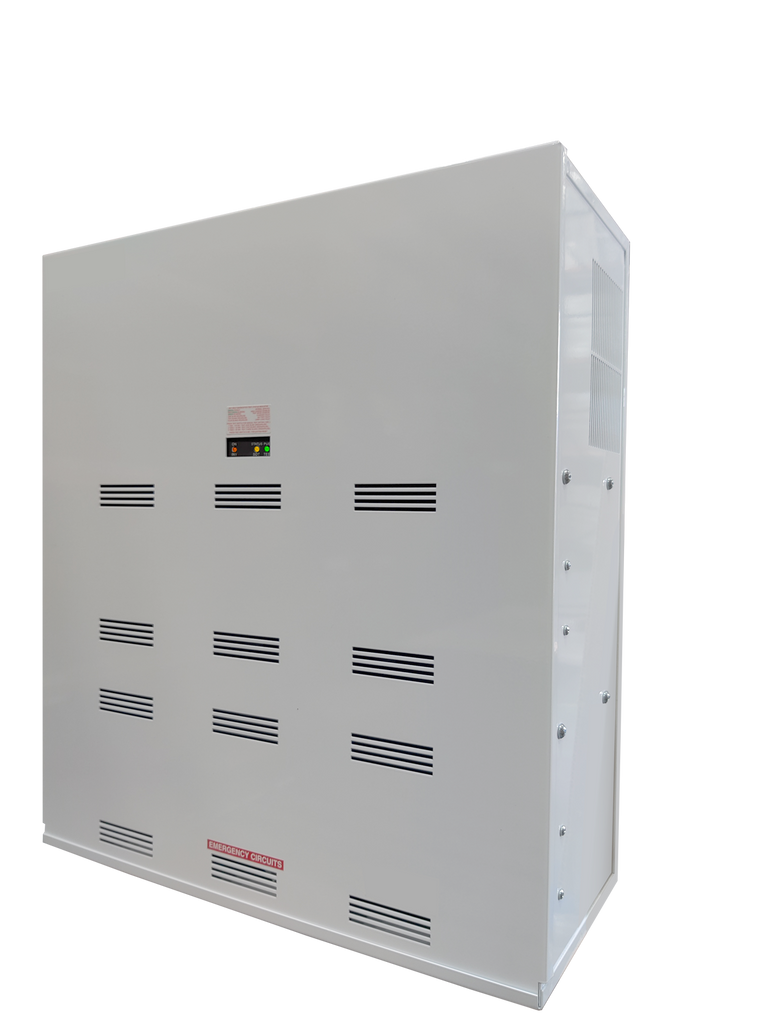

Electrical inverter Emergency Power LPS SERIES - High Wattage 750 Watts

• Midsize-electrical inverter systems for powering up to 750 to 1150 watts of incandescent, fluorescent, induction or LED lighting loads. Pulse width modulated (PWM) output design provides clean, 60 Hz. sinusoidal emergency power to loads.
• All models are designed for fast, easy wall mounting.
• Input Voltages: Universal 120 or 277VAC, 60Hz (User selectable with two jumper wires provided)
• Input Frequencies: 60Hz ±2%
• Input Surge Protection: Meets UL924
• Input Protection: Provided by Service Panel, Rated 20 amps maximum.
• Output Voltages: 120 or 277VAC, 60Hz
• Efficiency Rating: 98% at full rated load (line)
• Waveform: Sinusoidal (digitally controlled)
• Static Voltage: ±5% during battery discharge. 0-100% linear load.
• Output Frequencies: 60Hz. ±0.3Hz during emergency cycle
• Output Distortion: Less than 3% THO (linear load)
• Transfer Time: Less than 1.0 second
• Load Power Factor Range: 0. 88 Lead to 0. 88 Lag
• Minimum Loading: 0% of rated system capacity
• Output Protection: Circuit breaker and overload shut down protection
• Load Power Factor Range: 0.44 Lead to 0.44 Lag
• Minimum Loading: 0% of rated system capacity
• Output Protection: Circuit breaker
• Heavy duty steel cabinet is finished in white baked-on powder paint providing scratch and corrosion resistance.
• Unit: (excluding lamps) Full coverage against defects in materials and workmanship for 3 years from date of shipment

• Battery: 3 years full warranty plus an additional 7 years of pro-rata coverage
• All models are UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. UL Listed for damp locations (20° - 30°C)
• Certified to CEC Under Title 20 regulations
• FCC Part 15 Class A Compliant



  Specification Sheet Click Here
