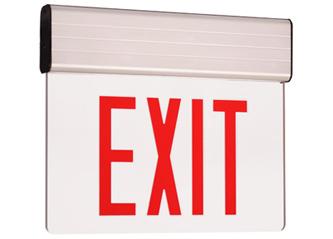

Clear Edge Lit Exit Sign Universal Mount - Aluminum Housing
- 120V or 277V
- Energy-saving LED

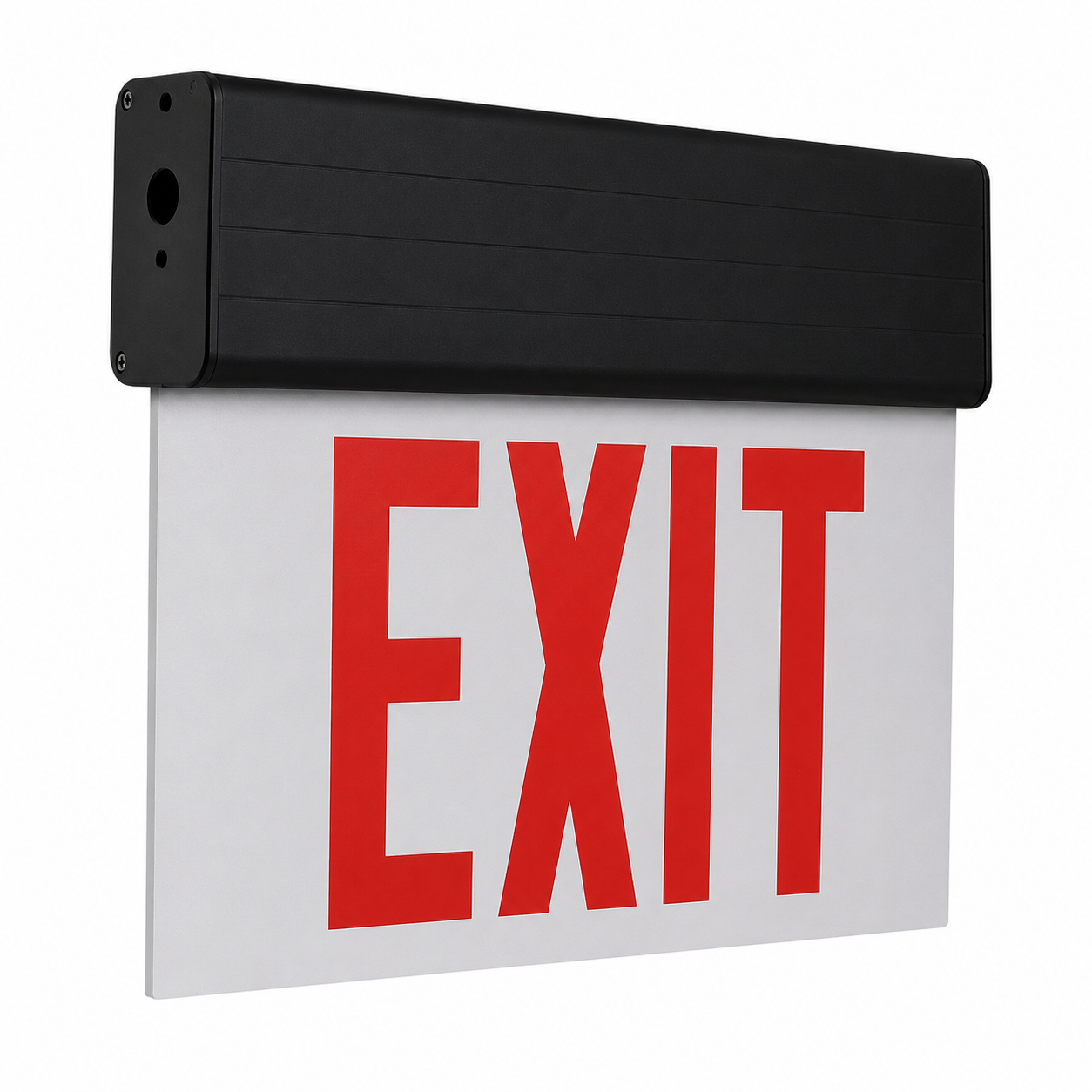

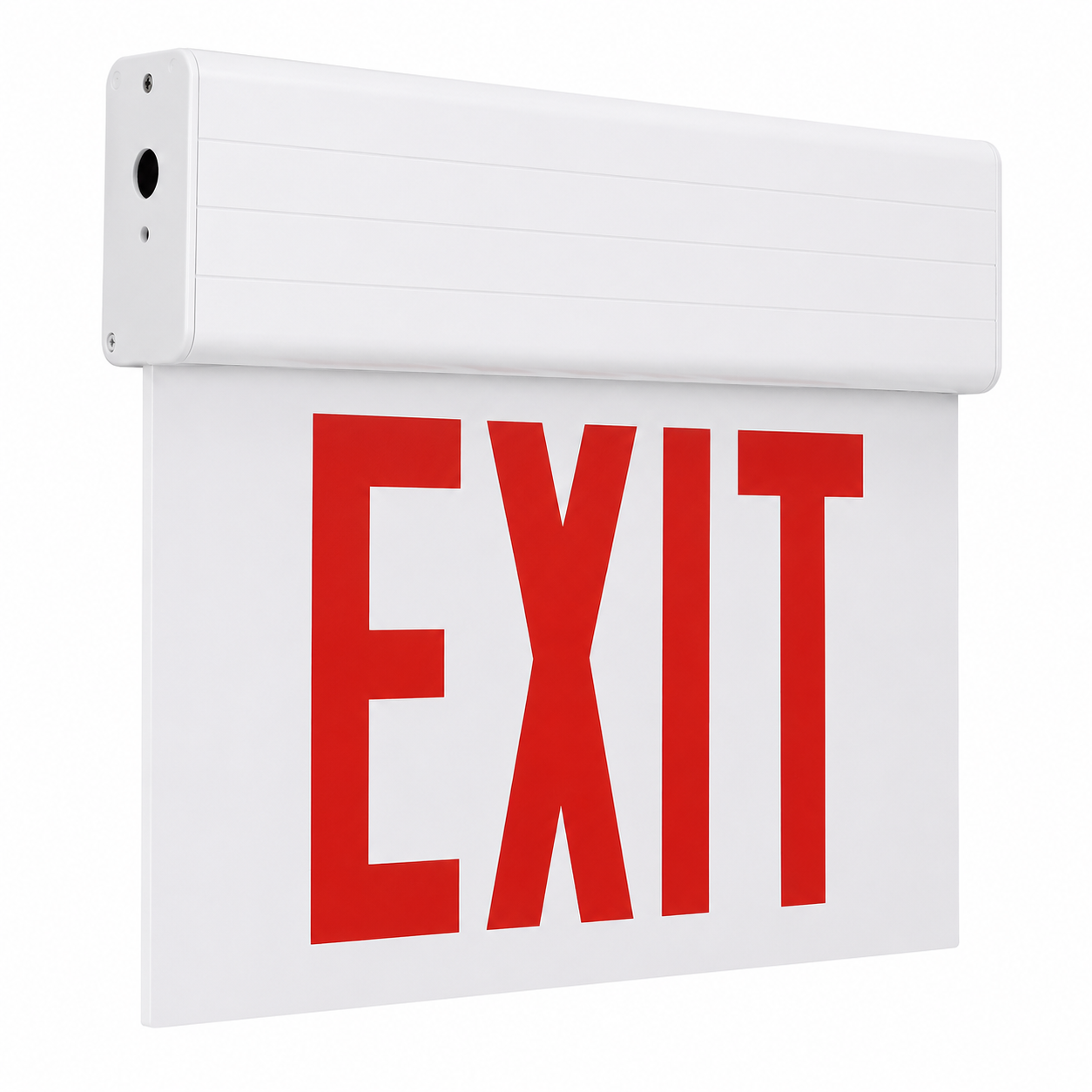

- Brushed aluminum housing - Optional White or Black
- 90 Minute Maintenance-free nickel-cadmium battery
- Mirror divider on double-face versions
- Field-applied arrows directional indicator
- UL 924 listed
- CSA Listed
The ESW-EL-R series has been developed with style, ease of installation and dependability in mind. Utilizing high-output indirect LED technology, the ESW-EL-R provides a surface mounted edge-lit EXIT sign with excellent light distribution. This sign can be wall / ceiling recessed or surface mounted. End mount configurations are also available. The ESW-EL-R series can be configured for AC only and Self-Powered operation versions. The ESW-EL-R series features universal field adjustable chevrons.
INTERNAL SPECIFICATIONS
AC ONLY: comes standard configured with high-output LED technology, 120/277VAC input.
SELF-POWERED: comes standard configured with high-output LED
technology, 120/277VAC input. Nickel-cadmium batteries provide a
minimum 90 minutes of emergency duration. Optional 120 minute
duration battery is available. Solid state charger & transfer.
EXTERNAL SPECIFICATIONS
The ESW-EL-R series housing backbox is constructed from durable 20 gauge steel. The acrylic face plate is available in both single face or double face versions, with a clear or mirrored panel. Field adjustable chevrons are standard. External LED monitor light and test switch are standard on self-powered versions.
INSTALLATION
The ESW-EL-R series is surface ceiling or wall mounting. Suitable for indoor installations.
EDGE-LIT DESIGN
The ESW-EL-R series of elegantly designed edge-lit exit signs feature a clean and contemporary look. The design brings style and flexibility to your next prestigious exit sign application. The indirect LED illumination evenly lights the acrylic face with crisp, even light. The ultra thin face plate virtually disappears once installed, yet the EXIT lettering boldly distinguishes the path of egress. The wide variety of finishes and mounting configurations available will ensure that the ESW-EL-R series can be easily matched to your decor.
ELECTRICAL SPECIFICATIONS
The edge lit series is configured with high-output LED lamps. Standard with 120/277VAC input. All LED versions consume only 1.1W nominal power.
MECHANICAL SPECIFICATIONS
The ESW edge lit series housing is constructed of sturdy 20 gauge steel. Universal mounting pattern and key hole slots are stamped into the housing providing various mounting options Face plates for the ESW-EL-R series are constructed of clear, solid acrylic. Field removable directional chevron arrows are standard.

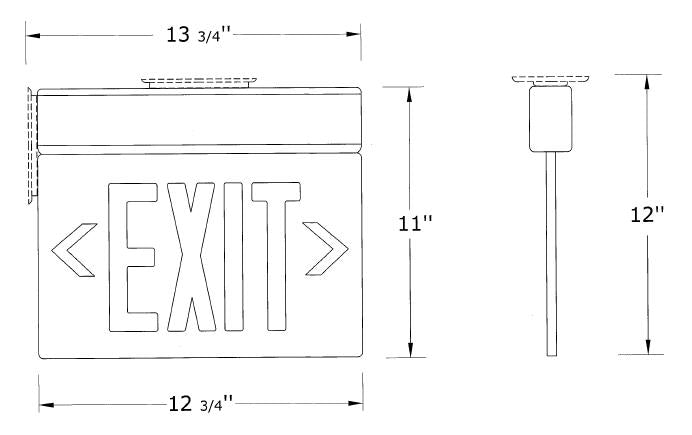

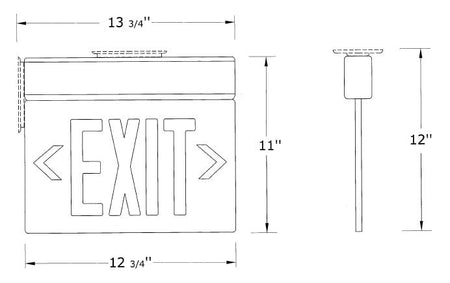

DIMENSIONS
13" Length 10.75" Height 1.75" Width
