LED HIGH BAY ROUND - 100W, 150W & 220W, 5000K
$0.00
Availability : In Stock
Product Type : LED Troffer and Ceiling Panels
Vendor : LED Troffer and Ceiling Panels
SKU : ESW-LEDHBR

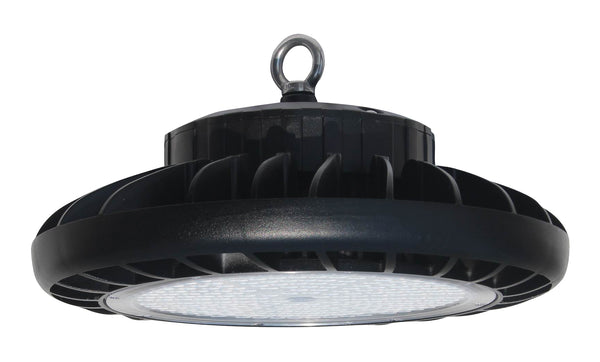

LED HIGH BAY ROUND - 100W, 150W & 220W, 5000K - The LEDHBR is a round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum...
LED HIGH BAY ROUND - 100W, 150W & 220W, 5000K - The LEDHBR is a round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum housing and polycarbonate lens, the LEDHBR provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.
▪ Available in 5000k (cool white) color temperature.*
▪ Long-life LEDs provide 69,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ LEDHBR100W-5K provides 13,092 lumen output from 100 watts input (132 lumens per watt).*
▪ LEDHBR150W-5K provides 20,879 lumen output from 147 watts input (142 lumens per watt).*
▪ LEDHBR220W-5K provides 27,023 lumen output from 226 watts input (120 lumens per watt).*
▪ Universal 120-277 AC voltage (50-60Hz) is standard. 480 AC voltage is available for LEDHBR150W-5K & LEDHBR220W- 5K by special order.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted die cast aluminum housing.
▪ Easy installation in new construction or retrofit.
▪ Long-life LEDs provide 69,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ LEDHBR100W-5K provides 13,092 lumen output from 100 watts input (132 lumens per watt).*
▪ LEDHBR150W-5K provides 20,879 lumen output from 147 watts input (142 lumens per watt).*
▪ LEDHBR220W-5K provides 27,023 lumen output from 226 watts input (120 lumens per watt).*
▪ Universal 120-277 AC voltage (50-60Hz) is standard. 480 AC voltage is available for LEDHBR150W-5K & LEDHBR220W- 5K by special order.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted die cast aluminum housing.
▪ Easy installation in new construction or retrofit.
▪ Model #'s LEDHBR100W LEDHBR150W LEDHBR220W
* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.
* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.
