PROCUCT OVERVIEW

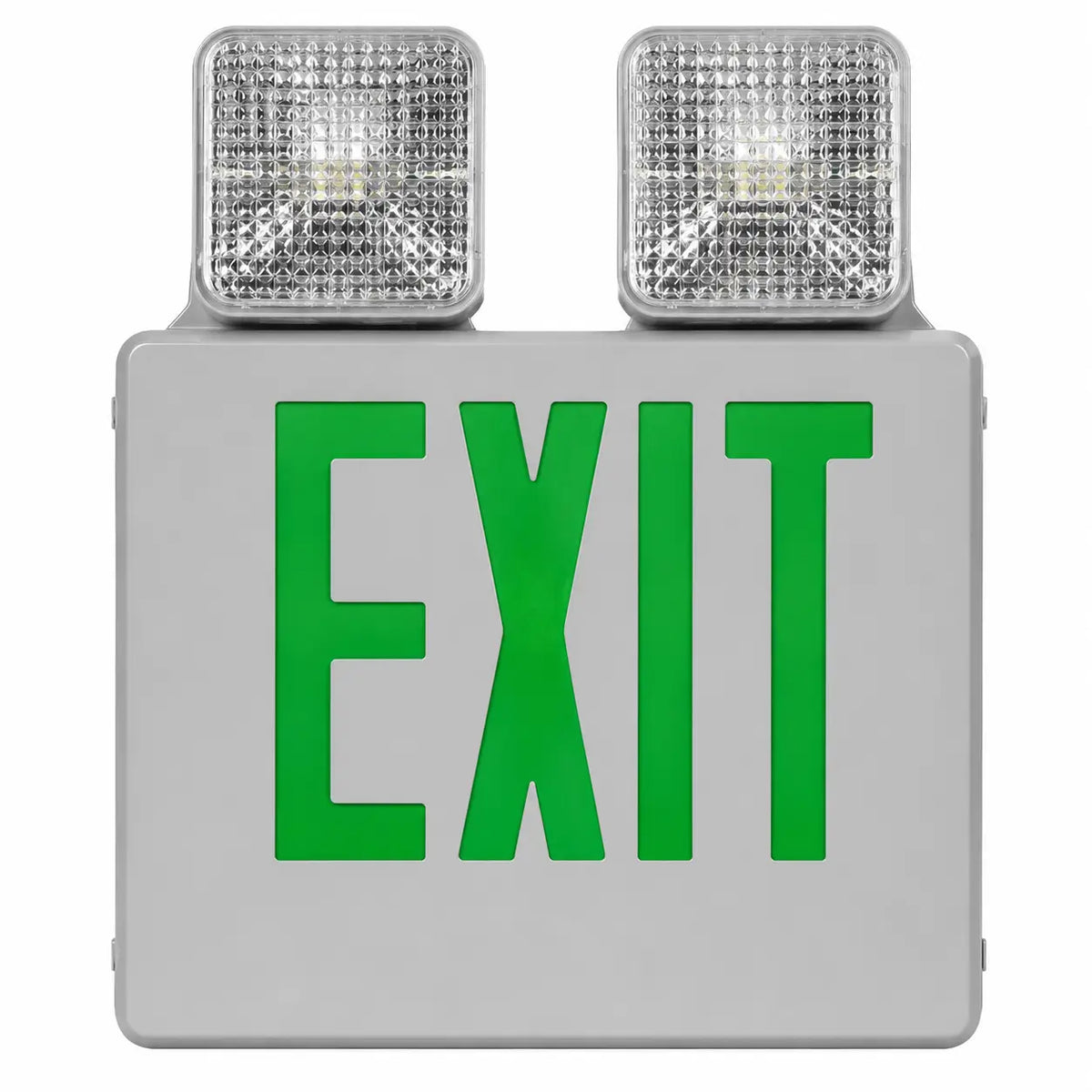

The re-engineered ESW-TPC-SA series combination emergency exit is even more “contractor friendly” than ever. The fully adjustable lamp heads can be configured for top mounted, side mounted, or anywhere in between without disassembly or rewiring. Constructed of durable, UV stabilized thermoplastic, the VEX-EL95 will provide years of reliable service. Universal configuration takes the guesswork out of ordering; all units come complete with two exit faces, backplate, and mounting canopy.

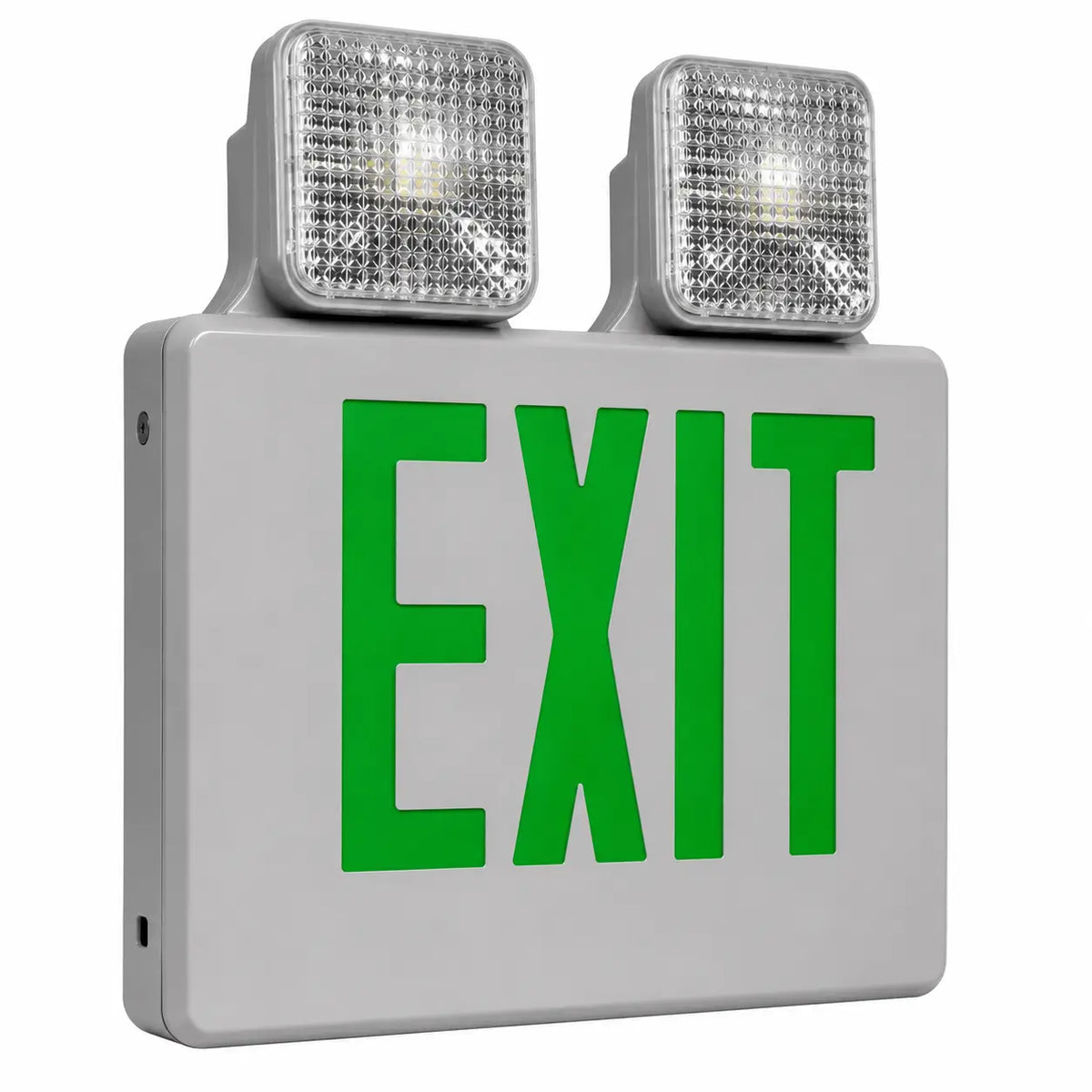

* Unique “swingarm” lamps can be mounted on the side or top of the unit without disassembly or rewiring
* Fully adjustable 5.4 watt lamp heads
* Red or green high intensity LEDs
* Contractor friendly, snap-together design
* Constant uniform illumination
* Universal configuration, single or doubleface
* Wall or ceiling mounted
* Available in white or black
* UV stable, thermoplastic components
* UL 94V-0 flame rating
* Mounting canopy included
* Field-selectable universal arrows
* 120/277V dual primary 60Hz input
* Low voltage disconnect
* Damp location listed
* UL 924 Listed

CONSTRUCTION
Housing, faces, backplate, and canopy are constructed of injection-molded, UV stabilized thermoplastic. All components are U.L. 94V-0 flame rated.

EXIT FACE
6" letters with 3/4" stroke, meets U.L. 924 requirements. Red or green diffuser offers a bright, uniform illumination.

ARROWS
Field selectable, directional chevrons are easily removed and reinserted.

ILLUMINATION
High output red or green LEDs with a life expectancy in excess of 25 years.

INSTALLATION

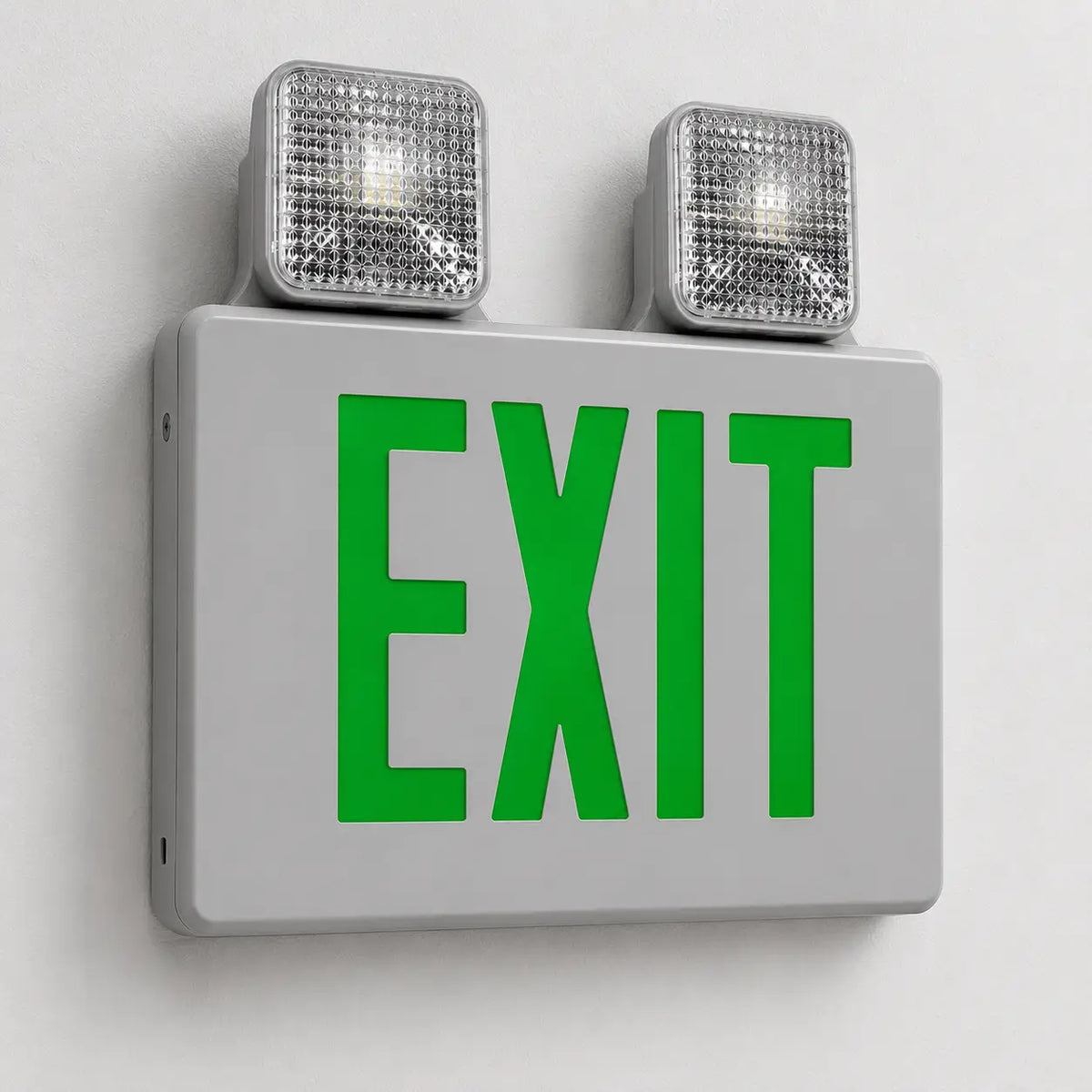

Interchangeable stencil face and/or backplate snap-together design. Unit mounts easily to wall or ceiling using canopy that locks securely without the need for tools.

CODE COMPLIANCE
The ESW-TPC-SA Series meets or exceeds all performance standards as required by UL 924, NFPA 70, NFPA 101, NEC and OSHA. Meets state of Minnesota energy efficient legislation requiring less than 20 watts of power consumption.

ELECTRONICS
Input: 120/277VAC, 60 Hz. Protection: Built-in surge, transient and low battery voltage disconnect. Suitable for damp location.

EMERGENCY OPERATION
Charger: Solid-state, constant current type. Transfer: Solid-state design. Recharge Time: 24 hours. Test Means: Integral test switch. Indicators: AC LED indicator.

BATTERY
• Maintenance-free, sealed lead-calcium battery
• Additional battery available for 12 watts of remote load or extended run time unit.
Long life, maintenance-free sealed lead-calcium battery is standard. Optional battery configuration allows for 12 watts of remote lamp load or extended unit run time (see ordering information).

LAMPS
Unit features (2) 6 volt 5.4 watt T5 wedge base lamps that illuminate in emergency mode.

WARRANTY
Any component that fails due to manufacturer's defect is guaranteed for 5 years with a separate 5 year pro-rated warranty on the battery. The warranty does not cover physical damage, abuse or acts of God and Exitronix reserves the right to charge for such repairs if deemed necessary.
