PRODUCT OVERVIEW
APPLICATION/DESCRIPTION

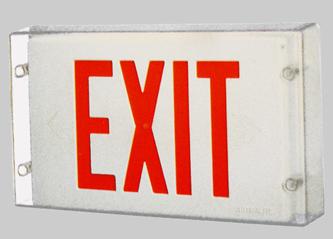

ESW has combined durability and style with dedicated mounting of this vandal and impact resistant Exit Sign. Gone are the days with the generic bubbles or oversized wire guards lagged to the walls. This product is designed to blend nicely in any environment without obstructive guards or cages. Use in gymnasiums, schools, and correctional facilities or anywhere rugged protection is required.
HOUSING
Injection molded UV stabilized (.140") Thick polycarbonate precisely formed low profile dedicated to enclose our TP series self powered Exit Sign. Mounts quick and easy with a .100” thick wall stain- less steel back plate.
VR S option includes Tamper Proof Mounting Screws.
4x Option includes Neoprene Gaskets suitable for Hose- down applications
ILLUMINATION
Long lasting high output AllInGaP LEDs with minimum degradation over life of LEDs. Unit draws less than 3watts and meets all Energy Star Requirements. Available in red or green.
ELECTRONICS
Input is dual volt standard 120/277 60Hz. Unit is damp location listed50°-104°F(10°-40°C). EM option features solid state design with low voltage disconnect, AC lockout, brown out protection, and AC indicator LED with test switch. Battery is standard Nickel Cadmium.
CODE COMPLIANCE
Tested and Listed to UL 924 for damp location, meets or exceeds NFPA, NEC, and OSHA illumination standard.
WARRANTY
5 years on housing and electronics with a 5 year pro rated warratty on the battery.
Dimensions
14.75 x 8.63 x 2.15
