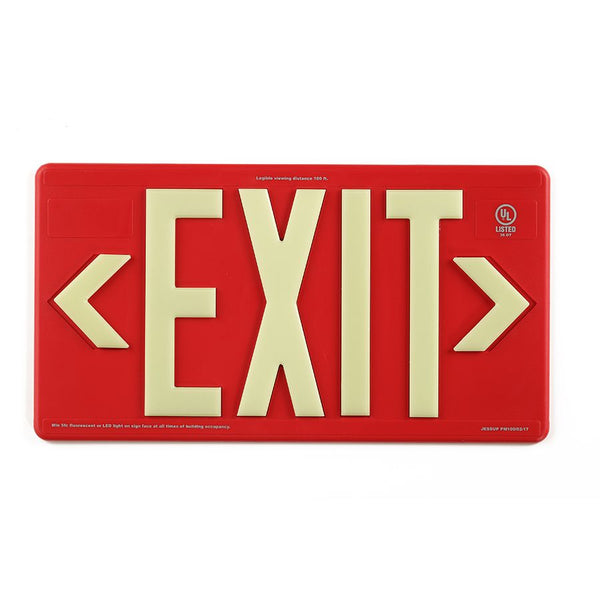

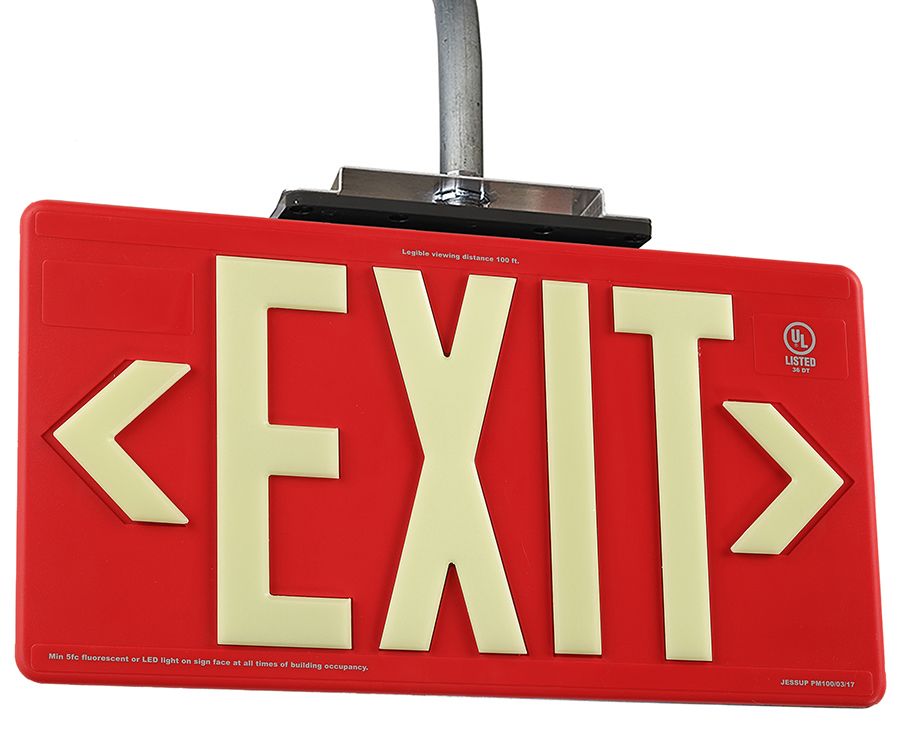

100' Viewing Exit Sign. UL 924 Listed - 8" Letters

High impact ABS Photoluminescent Glow in the Dark Exit Sign ESW-PL-CEN-R with 100 foot viewing distance. Wireless NON Electric Exterior Exit Sign Available in Red, Green or Black Face

• Rated for indoor and outdoor locations
• Zero energy consumption - zero cost, green design
• Zero maintenance - no bulbs, no battery replacement
• Non-toxic, non-radioactive
• No disposal cost
• Designed for surface, flag, ceiling or conduit mounting
• Can be used for both high-level and low-level applications Movable if egress paths change
• Thin, low profile construction
• Consistent, uniform illumination
• Visible at 100 feet
• Recyclable
• LEED points qualified
  SPECIFICATIONS
  Dimensions: 9.5 Height, 17 Width, 13/64thickness
  Letter Size: 1" Stroke with 8" Height
  Letter Color: Photoluminescent
  Background: Black, Green, or Red
  Sign Substrate: High strength ABS
  Directional: Two directional chevrons included for field application.
  Viewing Distance: 100 Feet
  Life Expectancy:: 25+ Years

  Features
  Non-electrical, non-radioactive, explosion proof, UV-stable, durable, minimal installation and maintenance expense.

  Directional Indicators
  Two self-adhesive directional indicators are supplied with each sign. Plastic outlines are provided to the left of the letter E and to the right of the letter T for easy alignment. If your EXIT sign is to be located other than directly over an exit, apply a directional indicator to the left of the E, pointing left, or to the right of the T, pointing right, or both, as appropriate.

  Mechanical Specifications
  The Cen photoluminescent products have been manufactured utilizing newly improved phosphorescent (glow-in-the-dark) pigments, which are based on Strontium Oxide Aluminate Chemistry. They are drastically different from conventional phosphorescent pigments, which are either based on Zinc Sulfide or on radioisotopes for their self-luminous properties. The initial afterglow brightness of Strontium Oxide Aluminate products is up to ten times that of conventional phosphorescent pigments. BPL Strontium Oxide Aluminate products lasts upwards of 30 hours, the time span for afterglow brightness to diminish to .32 mcd/m2 (100 times the human eye perception limit).

  Installation
  Prior to installation it must be determined that there is a minimum of 5 foot candles of fluorescent, metal halide, LED or mercury vapor light on the face(s) of the sign at all times during building occupancy. According to the EPA, the average foot candles found in an office space is 50 foot candles.

  Charging Time
  Initial charging time is 60 minutes.

  Compliance
  UL 924 Listed, NFPA 101 Life Safety Code, NFPA 5000, JCAHO, OSHA , ICC IBC, ICBO UBC, BOCA NBC, SBCCI SBC, 1/UFC, CA Building Code, CSFM Listed and ASTM 2072

  Warranty
  15-Year limited warranty to the original customer covering any defects in material workmanship.



  Specification Sheet Click Here
