How Mount Exit Signs from the Ceiling, End and Wall
How Mount Exit Signs from the Ceiling, End and Wall Mount

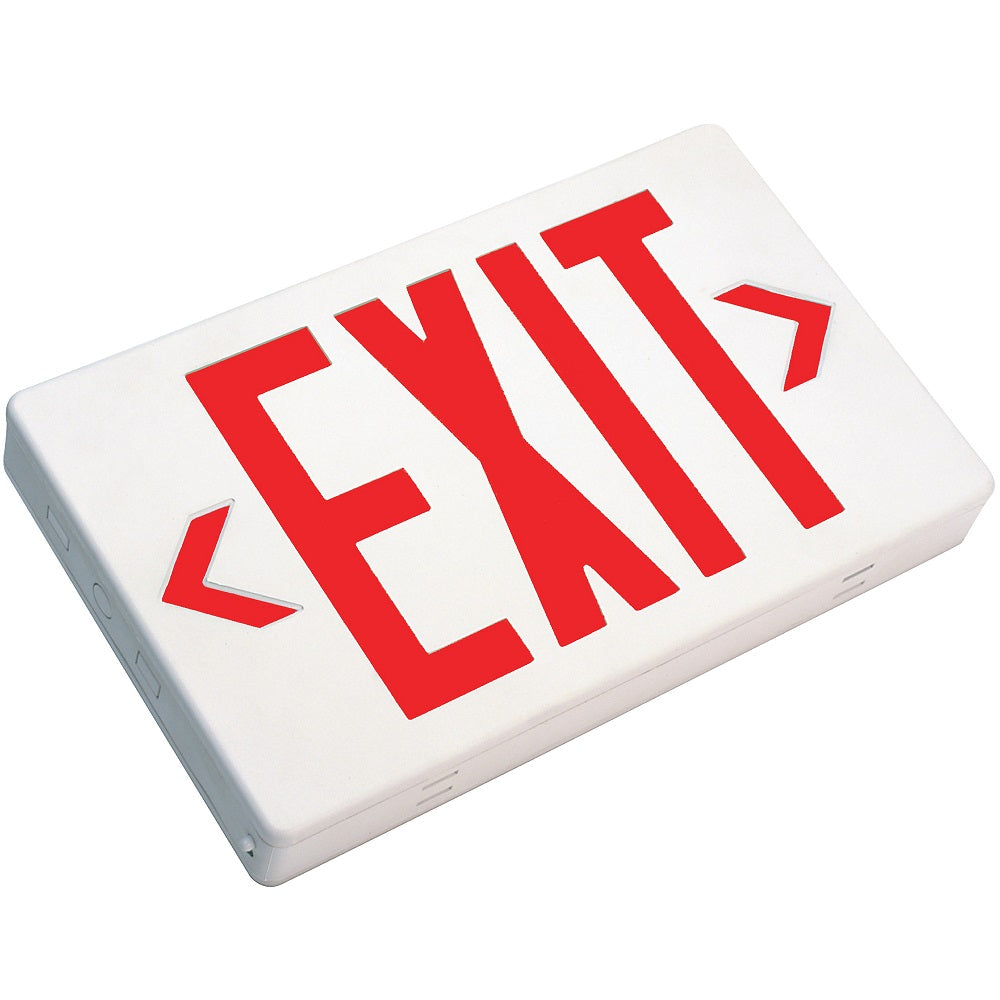

Ceiling or End Mount
1. Remove the faceplate and set aside.
2. Remove the desired knockout located on the top or sides of the enclosure.
3. Route wires out through the opening in the enclosure and through the canopy.
4. Snap the canopy onto the fixture.
5. Secure the J-box bracket to the J-box.
6. Make electrical connections; see Electrical Connections section.
7. Secure the canopy to the J-box bracket.
8. Connect the battery to the PCB.
9. For a double face fixture, remove the backplate and replace with the additional EXIT faceplate.
10. Remove the chevron(s) from the faceplate(s), if Needed. Replace the faceplate onto the enclosure.
Wall Mount (Single Face Only)
1. Remove the faceplate and set aside.
2. Punch out from the backplate the center knockout and any desired knockouts for mounting to the J-box. 3. Route wires out through the center hole of the backplate.
4. Make electrical connections; see Electrical Connections section.
5. Secure the fixture to the J-box.
6. Connect the battery to the PCB.
7. Remove the chevron(s) from the faceplate, if desired. 8. Replace the faceplate onto the enclosure.
