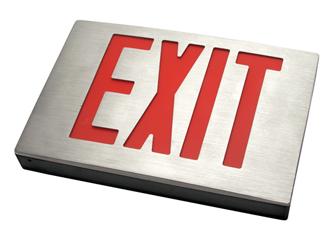

The ESW-CA-RA series is designed to provide a durable, attractive and maintenance-free exit sign. The ESW-CA-RA is manufactured from sturdy die-cast aluminum and comes standard with a brushed aluminum convex face and black housing. A universal mounting canopy is also included for ceiling and end mount applications. The ESW-CA-RA series comes standard configured with high-output LED technology, avalilable in red or green. AC only and Self-powered versions are available. The ESW-CA-RA is damp location.
INTERNAL SPECIFICATIONSAC ONLY: comes standard configured with high-output LED technology, 120/277VAC input.
SELF-POWERED: comes standard configured with high-output LED
technology, 120/277VAC input. Nickel-Cadmium batteries provide a
minimum 90 minutes of emergency duration. Solid state charger &
transfer.
EXTERNAL SPECIFICATIONSThe ESW-CA-RA series is constructed from durable die-cast aluminum and comes standard with a brushed aluminum face plate(s) and a Aluminum housing. Single, double and universal face versions must be specified. Available in custom epoxy-based powder coat finishes (please specify). Universal mounting knockouts are standard for ease of installation. Removable chevrons are standard on each face for field adjustability.

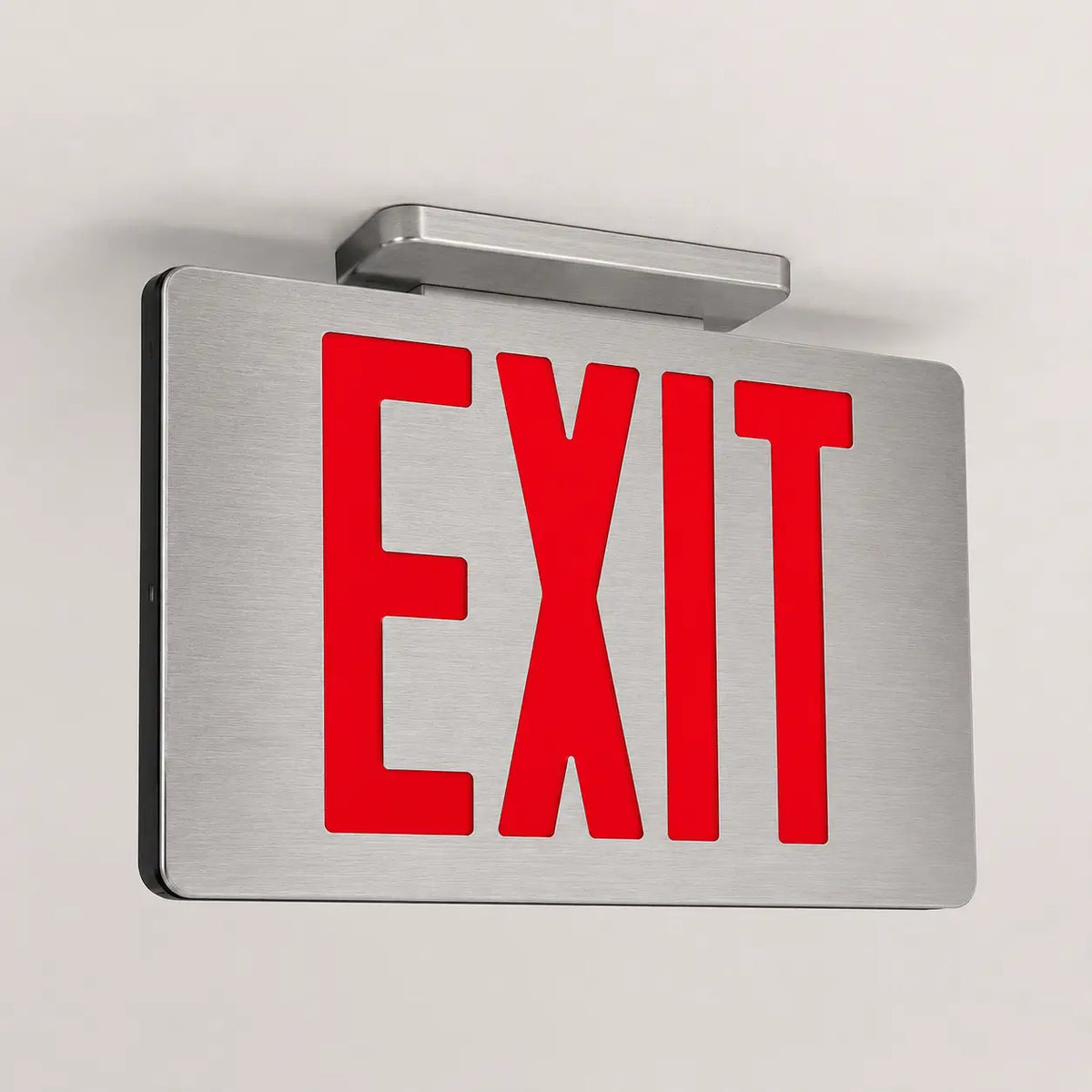

INSTALLATIONThe ESW-CA-RA series is suitable for ceiling, wall and end mounting. Suitable for damp location area installations.
ELECTRICAL SPECIFICATIONSThe ESW-CA-RA series is configured with high-output LED lamps. Standard with 120/277VAC input. All LED versions consume only 1.1W nominal power. Optional emergency illumination is provided by the LED light source at the following wattages.
6VDC - 0.5W
12VDC - 1.5W
24VDC - 3.5W
MECHANICAL SPECIFICATIONSThe ESW-CA-RA series is constructed from durable die-cast aluminum. Universal mounting pattern and key hole slots are stamped on the back. A surface mount conduit entry knockout is also provided. Field removable directional chevron arrows are standard. The ESW-CA-RA is supplied standard with a brushed aluminum face(s) and a black baked powder coat held securely in place with no visible screws, nuts or fasteners for a clean look.
DIE-CAST DESIGNThe excellent visual performance and architecturally pleasing
design makes the ESW-CA-RA series the premier choice for applications requiring the durability and the craftmanship of die-cast aluminum exit signs. The standard brushed aluminum face blends well with any setting and provides a clean, contemporary look. The diecast aluminum construction provides the ESW-CA-RA series with exceptional rigidity and strength.
SELF-POWERED VERSIONThe ESW-CA-RA series is designed to operate on battery power in the event of a regular/mains power failure. Both the battery and
charger are completely contained within the standard enclosure.
There are no external components and no alterations made to
the external dimensions of the standard sign.
BATTERY TECHNOLOGYThe ESW-CA-RA is designed with a maintenance free, Nickel-
Cadmium battery providing a minimum emergenct duration of 90
minutes. Recharge time is twenty-four (24) hours.
WARRANTYThe ESW-CA-RA Series comes with a 5-year factory warranty.
Deliberate damage, misuse, improper installation effectively
cancel the warranty.
DIMENSIONSLength-12.75" Height-9" width-2"
