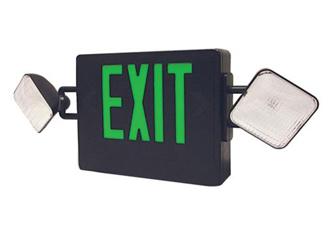

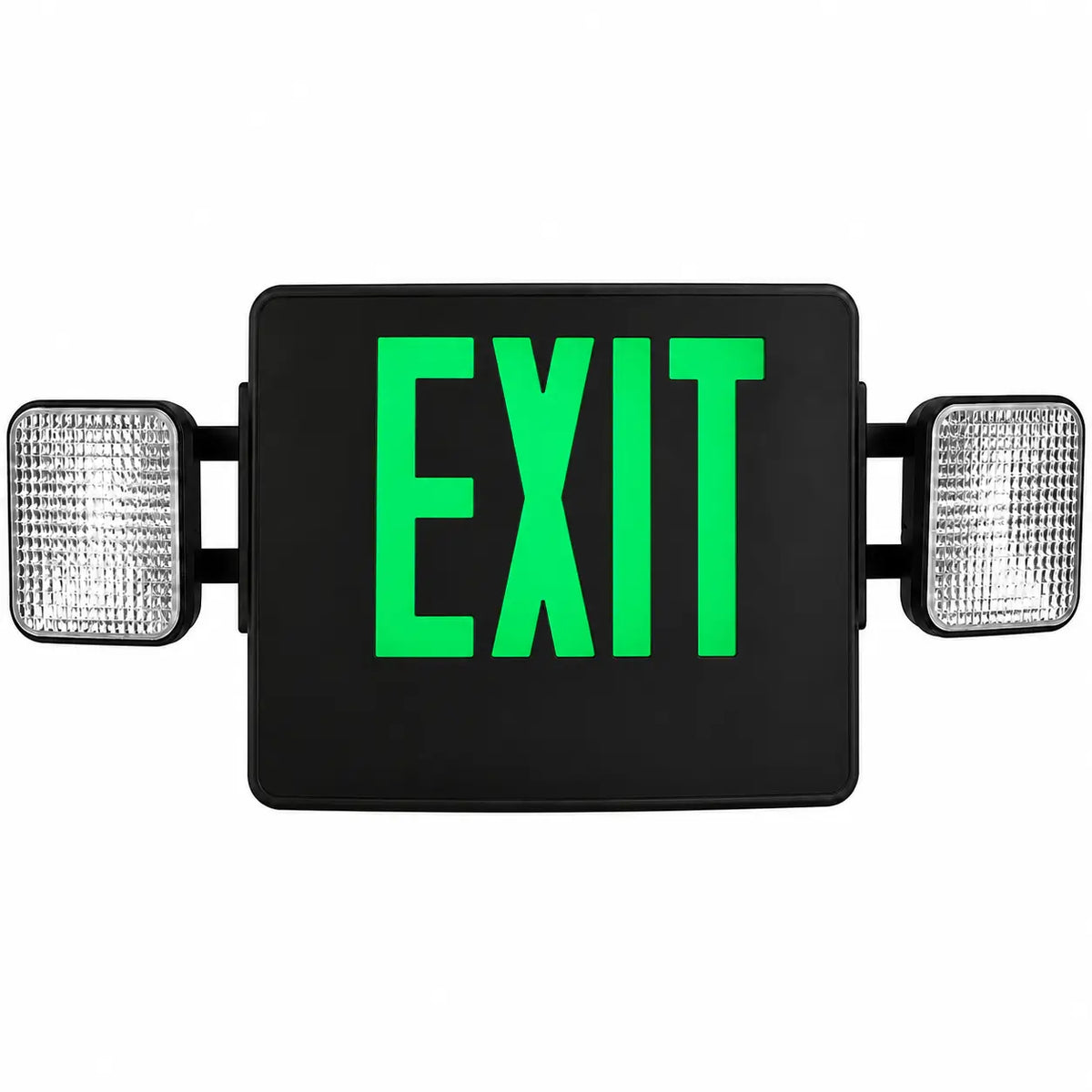

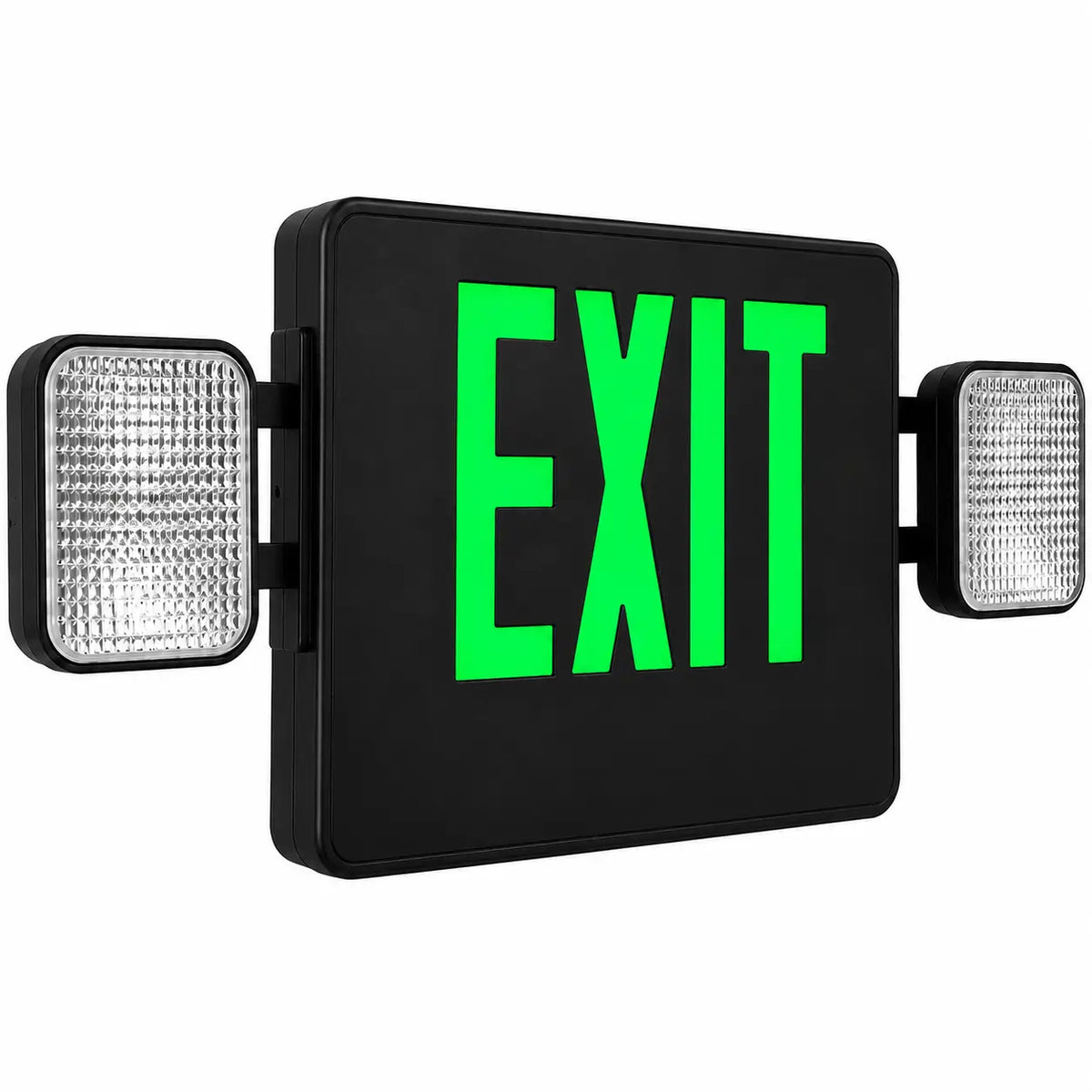

PRODUCT OVERVIEWThe ESW-TPC-GB series combination exit & emergency unit features an attractive, contemporary thermoplastic housing design. Ideal for commercial and institutional installations, the ESW-TPC-GB series combination unit blends perfectly with current interior decors. The ESW-TPC-GB series uses high-output red or green LED technology. Universal mounting on the wall or ceiling allows installation versatility. Emergency lighting heads can be swiveled 360° providing effective and accurate emergency illumination.
EXTERNAL SPECIFICATIONSThe ESW-TPC-GB series is constructed from durable corrosion and flame resistant thermoplastic. The ESW-TPC-GB series comes standard with a mounting canopy, two (2) stencils, one (1) backplate, removeable chevrons and all mounting hardware. Side mounted emergency lighting heads rotate 360° providing a new level of adjustability. The ESW-TPC-GB series comes standard finished in white; optional black finish is available. Removeable chevron arrows are standard on each fixture. External LED status indicator and test switch are standard.
INTERNAL SPECIFICATIONSSELF-POWERED: standard 120/277VAC input, self-powered versions use a maintenance-free sealed lead acid battery that provides a minimum 90 minutes of emergency duration. Solid state charger and transfer.

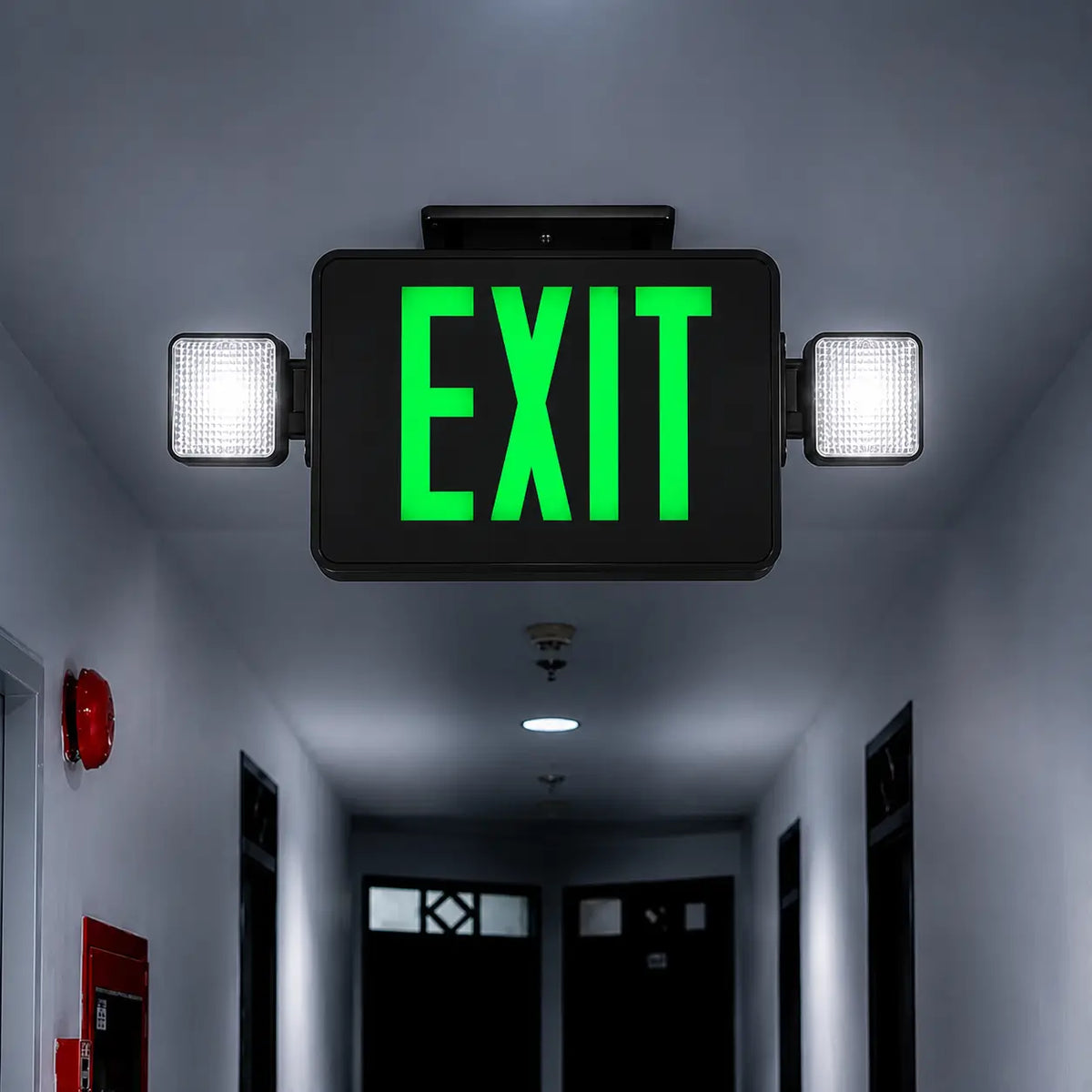

INSTALLATIONThe ESW-TPC-GB series combination unit is suitable for surface ceiling, and wall mounting. Suitable for indoor and damp location installations.
MODERN DESIGNThe ESW-TPC-GB series combination exit & emergency unit provides an attractive, versatile, space saving and affordable solution. The durable thermoplastic housing is corrosion and flame resistant. The ESW-TPC-GB series stencils include removeable chevrons that allow for easy "in the field" installation decisions. The modern and efficient design of the ESW-TPC-GB series allows for surface ceiling, and wall mounting. Canopy and all installation hardware is included.
ELECTRICAL SPECIFICATIONSThe ESW-TPC-GB series is configured with high-output LED lamps. LED version is standard with 120/277VAC input. Emergency lighting heads come standard configured with 5.4 watt incandescent wedge base lamps. RED LED - 4 Watts GREEN LED - 2 Watts
BATTERY TECHNOLOGYThe ESW-TPC-GB series is designed with a 6V 4.5Ah maintenance free, sealed lead acid battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is twenty-four (24) hours. The maximum battery working temperature is 50° C. When the ESW-TPC-GB is ordered with the "remote capable" option, a larger 6V 7Ah battery is used.
MECHANICAL SPECIFICATIONSThe ESW-TPC-GB series is constructed of durable corrosion and flame resistant thermoplastic. Field removeable directional chevron
arrows are standard. ESW-TPC-GB series can be universally mounted single or double face. Canopy and mounting hardware are
included. High-output LED technology provides energy savings,
long life and even illumination levels. Side mounted emergency
heads rotate 360°, providing accurate emergency illumination.
120/277VAC input, maintenance free sealed lead acid battery is
protected by an electronic cut-off circuit that prevents overdischarge.
External test switch and monitor LED are standard.
SELF-POWERED VERSIONSThe ESW-TPC-GB self-powered series is designed to operate on battery power in the event of a regular / mains power failure. Both the
battery and charger are completely contained within the standard
enclosure. There are no external components and no alterations
made to the external dimmensions of the standard sign. The
ESW-TPC-GB self-powered series utilize a solid state transformer technology that eliminates the possibility of relay failure due to particle build up on the relay. Status is easily determined via an LED that indicates AC-ON. A push button test switch allows maintenance to check functionality.
